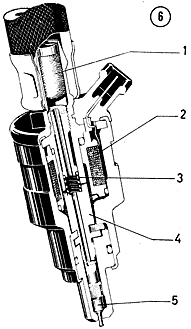

Clymer, 1972 ("Volkswagen Service Repair Handbook...")
Chapter 7, Figure 6
1. Filter
2. Magnetic winding
3. Return spring
4. Magnetic armature
5. Sealing needle
Copyright Clymer Publications, Overland Park, Kansas.
Used with permission.
Clymer, 1972 ("Volkswagen Service Repair Handbook...")
Chapter 7, Figure 6
1. Filter
2. Magnetic winding
3. Return spring
4. Magnetic armature
5. Sealing needle
Copyright Clymer Publications, Overland Park, Kansas.
Used with permission.
